Raytek RAYMI3COMM4 IR Thermometer Communication Box, -40 to 3,272°F

Model: RAYMI3COMM4

Raytek RAYMI3COMM4 IR Thermometer Communication Box, -40 to 3,272°F-


Downloads: datasheet

Raytek RAYMI3COMM4 IR Thermometer Communication Box, -40 to 3,272°F

Model: RAYMI3COMM4

Monitor temperatures easily with this IR thermometer communications box. The box boasts USB 2.0 and RS485 serial interfaces for an easy connection.

Monitor temperatures easily with this IR thermometer communications box. The box boasts USB 2.0 and RS485 serial interfaces for an easy connection.

Sale Price $265.82 USD
Regular Price $297.00 USD
Availability 3 to 4 Weeks
Quantity

Raytek RAYMI3COMM4 Offers



With this Raytek RAYMI3COMM4 IR Thermometer Communication Box, you can easily monitor temperature using J, K, R or S thermocouples. The plug-and-play design allows simple setup, and the box is equipped with USB 2.0 and RS485 serial interfaces.

Features

  • IR thermometer communications box measures temperatures from -40 to 3,272°F (-40 to 1,800°C) using compatible J, K, R or S thermocouples
  • Plug-and-play design
  • Crafted from die-cast zinc for durability
  • Offers internal temperature and break of head cable failsafe functions
  • Supports MI3 spectral models
  • Equipped with isolated alarm relay output
  • USB 2.0 and RS485 serial interfaces for simple connectivity
  • Features a high-resolution LCD with an intuitive user interface
  • Provides peak and valley hold and intelligent averaging (flicker) on-board signal processing
  • Compatible with DataTemp® Multidrop software, which allows remote monitoring
  • IP65/NEMA-4 rated

Raytek RAYMI3COMM4 Specifications


Ambient Temperature Range14 to 149°F (-10 to 65°C)
Thermocouple RangeJ: -40 to 1,112°F (-40 to 600°C), K: -40 to 1,472°F (-40 to 800°C), R/S: 482 to 3,272°F (250 to 1,800°C)
InterfaceUSB 2.0, RS485
Outputs4 to 20 mA, 0 to 20 mA, 0 to 5 V, 0 to 10 V, J/K/R/S thermocouples, 0 to 5 V head ambient signal
Relay48 V/300 mA (solid-state relay, potential-free)
InputsEmissivity ε setting (analog, 0 to 5 VDC), background radiation compensation (analog, 0 to 5 VDC), trigger/hold or laser switching (digital, high/low), digital emissivity control via inputs 1 to 3
AccuracymA/V output: ±1°C, thermocouple output: ±1.5°C
Temperature ResolutionmA/V output: ±0.2°F (±0.1°C) mA/V output (12 bit)
Temperature CoefficientmA/V output: ±0.02 K/K, thermocouple output: ±0.05 K/K
MaterialDie-cast zinc
Storage Temperature-4 to 185°F (-20 to 85°C)
Product Width4.53" (115 mm)
Product Height1.2" (31.5 mm)
Click here for complete specifications on the Raytek RAYMI3COMM4

What's included with the Raytek RAYMI3COMM4

  • Raytek RAYMI3COMM4 IR Thermometer Communication Box, -40 to 3,272°F
  • Step-by-Step guide to ensuring reliable operation of your miniature infrared sensors

    Step 1 - Ensuring reliable operation

    The Mi3 uses a digital I2C bus for communication between the sensing head and communication box. Care must be taken with respect to grounding and shielding.

    To ensure reliable operation please only use a single point to connect to EARTH ground. In case of multiple heads it is advised to electrically isolate all heads using an air purge collar or isolated bracket.

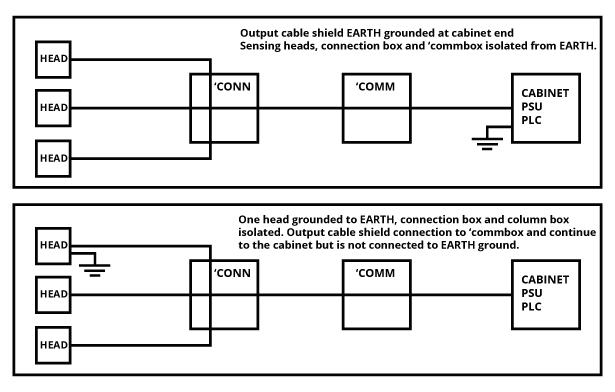

    Different methods of connecting your COMM box with the sensing heads

    Step 2 - Identifying head model and serial number

    There are 3 basic types of sensing heads. They are automatically recognised by the ‘COMM box and identified by their serial number. When installing multiple heads please make a note of the serial number stamped on the head itself and location. The head number can be modified by the front panel of the sensor.

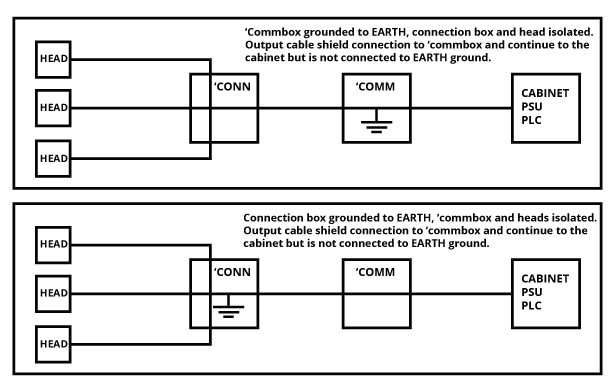

    Different methods of connecting your COMM box with the sensing heads

    Step 3 - Purge collar

    If necessary fit the purge collar. This only applies to the Mi3 LT and G5, Mi3LTH will have the air purge collar installed during manufacture. For the Mi3100, the air purge collar can be installed at any time.

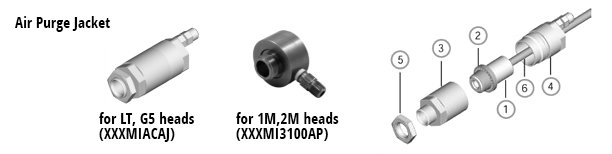

    Air purge jacket for the LT and G5 heads, as well as the 1M and 2M heads

    Step 4 - Head to box connection

    There are 2 basic versions of the communication box. ‘COMM(metal) and ‘MCOMM (plastic). There is also a ‘CONN box for connection up to 8 heads.

    For the sensing head, shielded 4-wire cable is used for power supply and communication. To avoid inaccurate measurement and communication, the cable shield should be connected to the housing or shield connection of the COMM box. The sensor cable may be shortened, if necessary, but keep a minimal length of 20 cm (7.9 in).

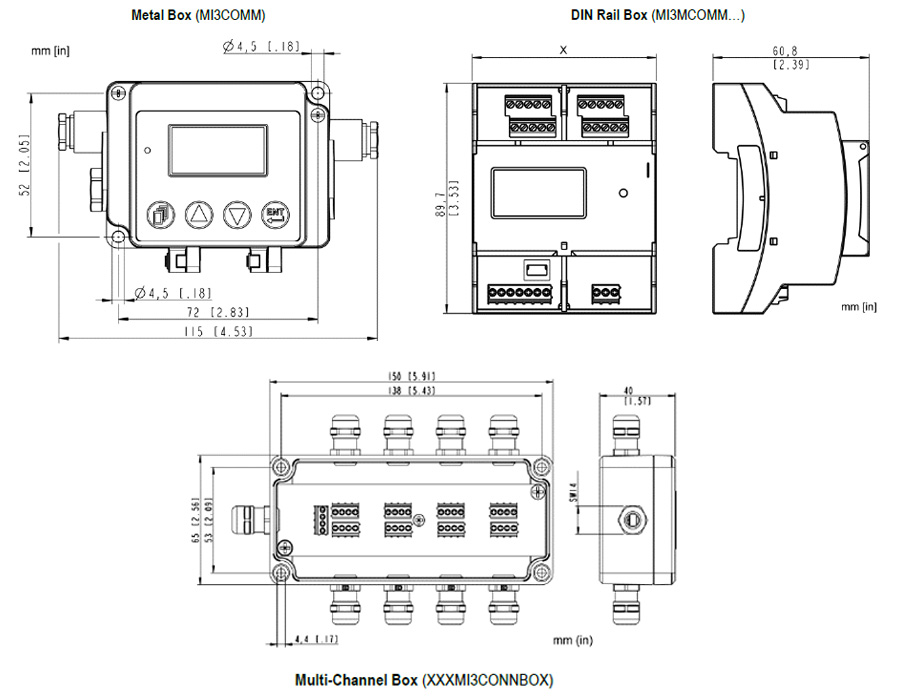

    Dimensions and layout of different COMM boxes

    Step 5 - Examples of installation schemes (for consideration of maximum total cable length)

    The total head to box cable length affects the overall cable capacitance. The Mi3COMM (metal box) has a single I2C bus and can accommodate a total cable length of 30m.The Mi3MCOMM has a dual I2C bus and can accommodate 60m but installed as 2 x 30m, see example c. Intermediate connectors may be used with consideration to minimise capacitance. The overall cable length may need to be reduced.

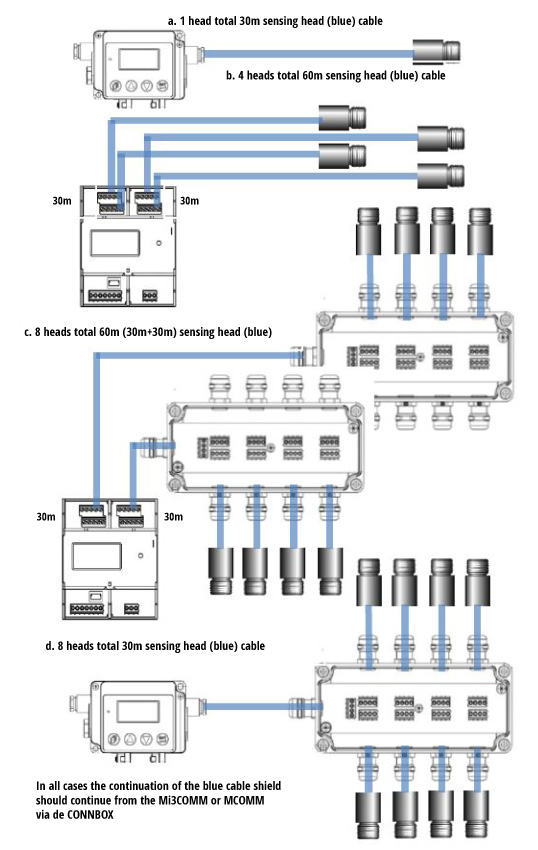

    Installation scheme examples

    Step 6 - Head - Connection box - Communication box - Control system connection

    The Mi3 head cable is shielded and must connect with the ‘COMM box housing or the ‘MCOMM box shield terminal.

    Any input/output cables should be shielded. The output cable shield will be terminated at the cabinet, plc, psu end only if all other parts of the the Mi3 are isolated from EARTH ground.

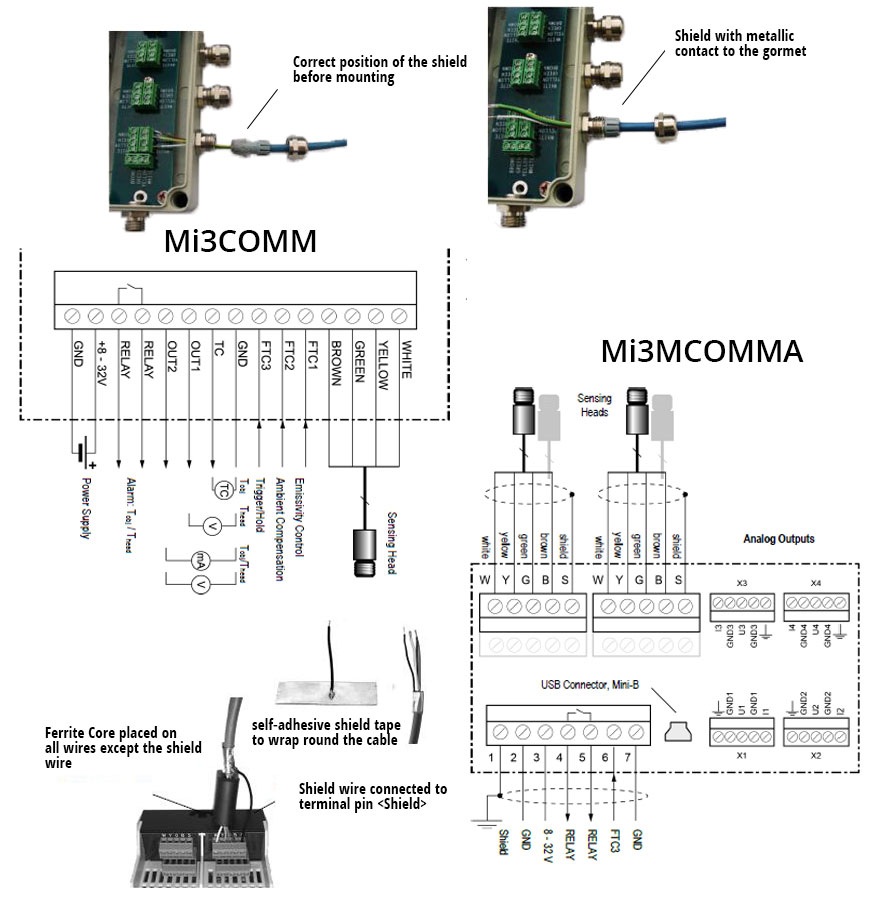

    Correct positioning of the shield before mounting.

    Step 7 - Modify parameters, define outputs and head numbering

    The head number can be changed in the SN entry. In case the display is locked – press PAGE and ENTER simultaneously for 3s or until the padlock icon disappears. mA is only available on OUT2. OUT2 Source needs to be changed to the head number and OUT2 Value should be set to Tobject.

    Defining outputs and head numbering, modifying parameters
