Raytek RAYMI310LTSCB15 Infrared Temperature Sensor with 15m Cable, 10:1 Optics, -40 to 600°C (-40 to 1112°F)

Model: RAYMI310LTSCB15

Raytek RAYMI310LTSCB15 Infrared Temperature Sensor with 15m Cable, 10:1 Optics, -40 to 600°C (-40 to 1112°F)-


Downloads: datasheet manual

Raytek RAYMI310LTSCB15 Infrared Temperature Sensor with 15m Cable, 10:1 Optics, -40 to 600°C (-40 to 1112°F)

Model: RAYMI310LTSCB15

The MI3 is a rugged, IP65-rated miniature sensing head that can be placed in harsh environments inaccessible to conventional sensors. The MI3 is not a stand-alone sensor and must be purchased in conjunction with MI3MCOMM communication box to function.

The MI3 is a rugged, IP65-rated miniature sensing head that can be placed in harsh environments inaccessible to conventional sensors. The MI3 is not a stand-alone sensor and must be purchased in conjunction with MI3MCOMM communication box to function.

Sale Price $439.45 USD
Regular Price $491.00 USD
Availability 12 in Stock
Quantity

Raytek RAYMI310LTSCB15 Offers

Must purchase the RAYMI3COMM in order for the instrument to function.

Low temperature sensor with a measurement range of -40 to 600°C (-40 to 1112°F) and a fast response (<130 ms), provides an impressive array of solutions for your process needs. The miniature stainless steel sensing head is small enough to fit in many places that are inaccessible to conventional sensors and rugged enough to ensure reliable long term performance in the harshest industrial environments; it can survive ambient temperatures of 14 to 248°F (-10 to 120°C) without cooling. Although the MI3 sensor is small in size, it has all the performance you need– with 1% accuracy and a choice of high resolution optics up to 10:1.

Raytek RAYMI310LTSCB15 Specifications

Temperature Range -40 to 600ºC (-40 to 1112ºF)
Accuracy ±1% of reading or ±2.5°C, whichever is greater
Optical Resolution 10:1 Distance : Spot size
Ambient Temperature 120ºC (248ºF) maximum
Environmental Rating IP 65 (NEMA-4)
Construction Stainless steel
Cable Material PUR halogen free, flame retardant insulation
Click here for complete specifications on the Raytek RAYMI310LTSCB15

What's included with the Raytek RAYMI310LTSCB15

  • Infrared temperature sensor
  • One mounting nut
  • 15m (49 ft) cable

Step-by-Step guide to ensuring reliable operation of your miniature infrared sensors

Step 1 - Ensuring reliable operation

The Mi3 uses a digital I2C bus for communication between the sensing head and communication box. Care must be taken with respect to grounding and shielding.

To ensure reliable operation please only use a single point to connect to EARTH ground. In case of multiple heads it is advised to electrically isolate all heads using an air purge collar or isolated bracket.

Different methods of connecting your COMM box with the sensing heads

Step 2 - Identifying head model and serial number

There are 3 basic types of sensing heads. They are automatically recognised by the ‘COMM box and identified by their serial number. When installing multiple heads please make a note of the serial number stamped on the head itself and location. The head number can be modified by the front panel of the sensor.

Different methods of connecting your COMM box with the sensing heads

Step 3 - Purge collar

If necessary fit the purge collar. This only applies to the Mi3 LT and G5, Mi3LTH will have the air purge collar installed during manufacture. For the Mi3100, the air purge collar can be installed at any time.

Air purge jacket for the LT and G5 heads, as well as the 1M and 2M heads

Step 4 - Head to box connection

There are 2 basic versions of the communication box. ‘COMM(metal) and ‘MCOMM (plastic). There is also a ‘CONN box for connection up to 8 heads.

For the sensing head, shielded 4-wire cable is used for power supply and communication. To avoid inaccurate measurement and communication, the cable shield should be connected to the housing or shield connection of the COMM box. The sensor cable may be shortened, if necessary, but keep a minimal length of 20 cm (7.9 in).

Dimensions and layout of different COMM boxes

Step 5 - Examples of installation schemes (for consideration of maximum total cable length)

The total head to box cable length affects the overall cable capacitance. The Mi3COMM (metal box) has a single I2C bus and can accommodate a total cable length of 30m.The Mi3MCOMM has a dual I2C bus and can accommodate 60m but installed as 2 x 30m, see example c. Intermediate connectors may be used with consideration to minimise capacitance. The overall cable length may need to be reduced.

Installation scheme examples

Step 6 - Head - Connection box - Communication box - Control system connection

The Mi3 head cable is shielded and must connect with the ‘COMM box housing or the ‘MCOMM box shield terminal.

Any input/output cables should be shielded. The output cable shield will be terminated at the cabinet, plc, psu end only if all other parts of the the Mi3 are isolated from EARTH ground.

Correct positioning of the shield before mounting.

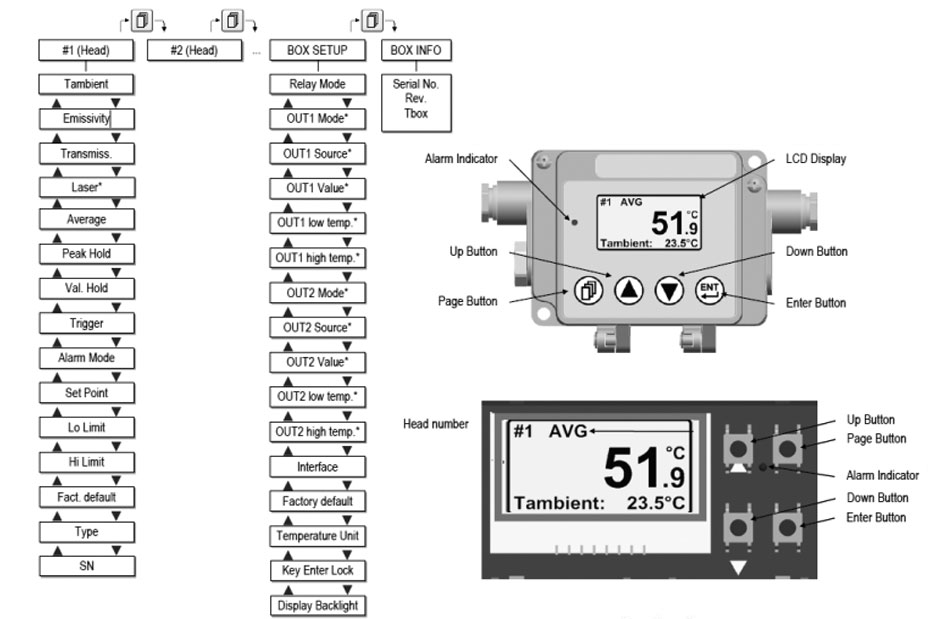

Step 7 - Modify parameters, define outputs and head numbering

The head number can be changed in the SN entry. In case the display is locked – press PAGE and ENTER simultaneously for 3s or until the padlock icon disappears. mA is only available on OUT2. OUT2 Source needs to be changed to the head number and OUT2 Value should be set to Tobject.

Defining outputs and head numbering, modifying parameters

Click on a category to view a selection of compatible accessories with the Raytek RAYMI310LTSCB15 Infrared Temperature Sensor with 15m Cable, 10:1 Optics, -40 to 600°C (-40 to 1112°F).

Raytek RAYMI3 Infrared Thermometer Communication Box with USB 2.0 communications RAYMI3COMM
The communication box is part of a two-piece infrared temperature measurement system and consists of rugged digital electronics with an LCD, push-button interface for sensor configuration, and connection terminals housed in an IP65 (NEMA 4) enclosure. For use in conjunction with MI3 Infrared Sensing Heads.




Raytek XXXMIACAJ Air Purge Jacket for Raytek MI3 Series XXXMIACAJ
Used to keep dust, moisture, and other contaminants away from the lens. For use in ambient temperatures <200°C (<392°F).




Raytek XXXMIACCJ Air Cooling and Purging System for Raytek MI3 Series, 0.8m Insulated Air Hose XXXMIACCJ
The sensing head can operate in ambient temperatures up to 200°C (392°F) with the Air Cooling System. The Air Cooling System comes with a 0.8m (2.8 ft) insulated air hose and a T-Adapter, which allows the hose to be installed without interrupting the connections to the box.




Raytek XXXMIACCJ1 Air Cooling and Purging System for Raytek MI3 Series, 2.8m Insulated Air Hose XXXMIACCJ1
The sensing head can operate in ambient temperatures up to 200°C (392°F) with the Air Cooling System. The Air Cooling System comes with a 2.8m (9.2 ft) insulated air hose and a T-Adapter, which allows the hose to be installed without interrupting the connections to the box.




Raytek XXXMIACRAJ Right Angle Mirror for Raytek MI3 Series Air Cooling and Purging Systems XXXMIACRAJ
For use with air cooling and purging systems. The Right Angle Mirror is used to turn the field of view by 90° against the sensor axis. It is recommended when space limitations or excessive radiation do not allow for direct alignment of the sensor to the target.
